Idoing 10.2 inch 2.5D Car Android Radio Multimedia Player For Mitsubishi Outlander 2014-2017 GPS Navigation Head Unit Plug And Play

Idoing 10.2 inch 2.5D Car Android Radio Multimedia Player For Mitsubishi Outlander 2014-2017 GPS Navigation Head Unit Plug And Play

Name: Idoing 10.2 inch 2.5D Car Android Radio Multimedia Player For Mitsubishi Outlander 2014-2017 GPS Navigation Head Unit Plug And Play
Price: 408.88 USD

PPP2115

0 reviews

3 orders

$408.88 $598.88

Lv.1

0% OFF

规格1:

Optional 1:

Optional 2:

Optional 3:

Optional 4:

Quantity :

500

Shipping cost:

--- to --- via ---

More options

Estimated delivery time:

---

Select Your Country

ADD TO CART

BUY NOW

REMIND ME

INQUIRE NOW

ADD TO FAVORITES (1683)

Do you want to start making money?

Join us to promote this product via your exclusive link!

Description

Idoing 10.2" 2.5D Car Android Radio Multimedia Player For Mitsubishi Outlander 2014-2017 GPS Navigation Head Unit Plug And Play

Brand	Idoing
Din	1 din
Operating System	Android system 12
CPU	ARM 12NM , Octa core 2.0 GHZ 2A75+1.8GHZ 6A55
DDR	SAMSUNG DDR3 4GB
EMMC	64GB
Max External Memory	128G
Radio	FM/AM
Screen	2.5D IPS Full Touch Screen
Screen Resolution	1280*720
GPU	ARM Mali G52 614.4MHz
Radio IC	NXP 6686
Power amplifier IC	TDA7850
Bluetooth IC	BC5.0
Power supply	4*50W max
Video Decoder	1080P HW
DSP	32-Band Equalisation
OSD Language	English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages
Built in	Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI
Support	Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DV

Multi media Parameters
Music Format	MP3,WMA,AAC,RM,FLAC etc
Video Format	MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip
Picture Format	JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range	FM:76.0MHz-108.0MHz
Frenqency Range	AM: 522KHz-1620KHz
Country	Australia,Europe,Russia,USA1,USA2,

Amplifer Parameters
Test Voltage	14.4V
Max output power	4*50W
GPS Parameters
Support Map	Android 12.0 Map:google/here/sygic/tomtom/waze/igo...
Main Frenqency	1.575GHz
WIFI Parameters
Power supply	Vcc_3.3V
Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
Interface type	USB2.0
Frequency	2.4-2.484GHz
Modulation	OFDM/DBPSK/DQPSK/CCK
RF Power	15dBM

Could you take a picture to show your car center dash console if you are confused!

Idoing 10.2" Newest Version Android Car GPS System

Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

For Mitsubishi Outlander 2014 2015 2016 2017

https://youtu.be/zTaMHEyq7hU

TIPS:this one standard accessories without canbus cable,if your original car with rockfound sound system,

need buy an external canbus cable.

Provide you with more choices,for up to70national languages.

Android 12.0 Operating System

ARM 12NM Octa-Core

64 bit CPU

2.0GHz,Dual-Core ARM Cortex A75

1.8GHz,Hexa-Core ARM Cortex A55

2.5D+QLED Display Screen

2.5D,prevent scraping,QLED screen for all viewing angles very clear.

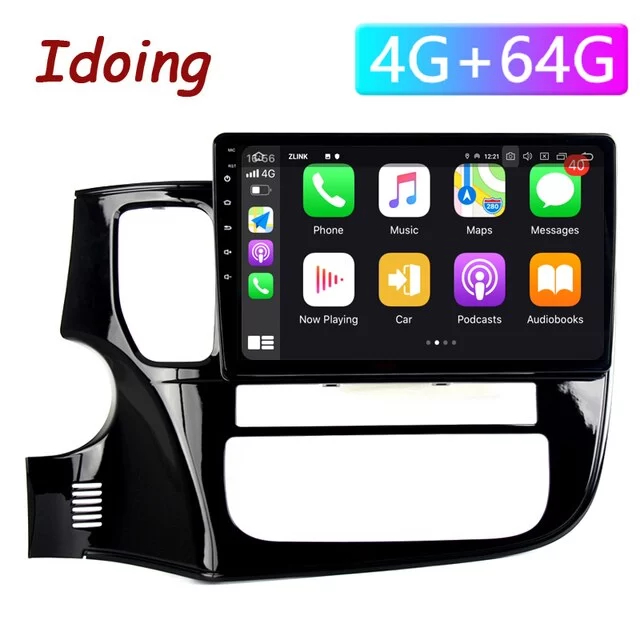

Built-in Carplay(wireless+wire) And Android Auto(wireless+wire)

Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

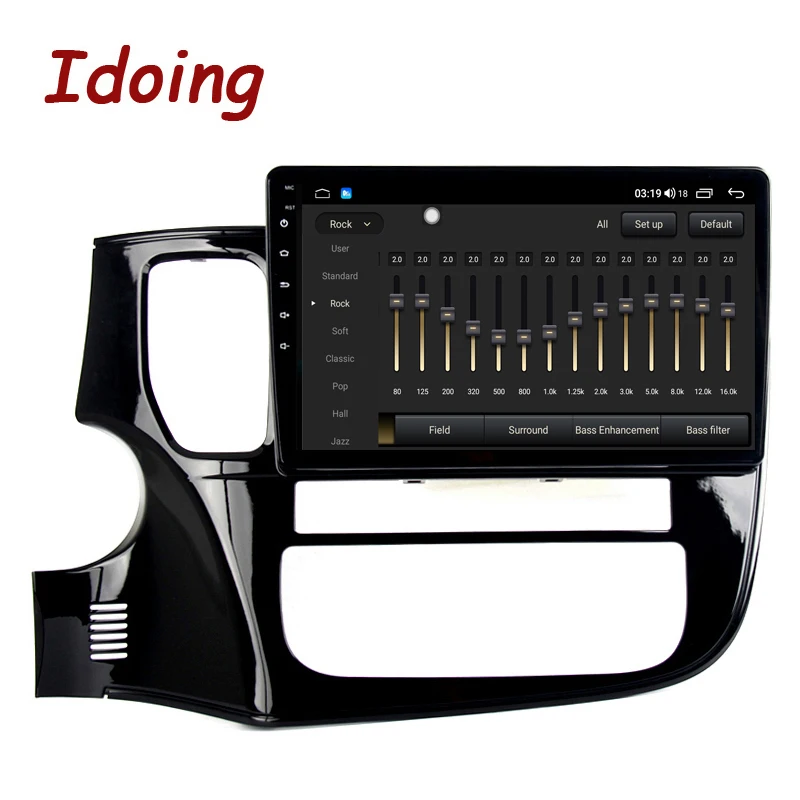

Build-in 32 EqualizerDigital Signal Processing(DSP)

32 Equalizer Adjustments

Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.AM/FM radio (AM 2 bands,FM 3 bands).

Qualcomm bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.

Support breakpoint memory play.

Support 7 kinds of button colors

7 colors of button indicator for your multiple choice.

Setting your favorite car radio UI,built-in 4 sets of UI

Support OBD2(optional)

You can connect a bluetooth OBD2 scanner tool to use this function.

Tips: OBD2 is optional,Suggest you buy it from us.pls click this picture:

Built-in 4G Modem

Support EX-3G/4G(WCDMA/CDMA2000/TD-SCDMA standard).

Tips: 3G/4G cable not including,suggest you buy 3G modem from us.

Support ADAS USB DVR(optional)

Support AHD Rear View Camera(optional)

Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.

this link to buy this camera.

Support DAB+(optional)

1.connect with a DAB+Box via USB port to use DAB+ function.

2.support input digital radio programs and touch operation.

3.support touchscreen to search programs.

Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
