Idoing 7"Android 2.5D Head Unit Plug And Play For Toyota-Universal Car Radio Audio Multimedia Player GPS Navigation Carplay Auto
Full installation video: https://youtu.be/WbELtYw6te0
| Brand | Idoing | |
| Din | 1 din | |
| Operating System | Android system 12 | |
| CPU | ARM 12NM , Octa core 2.0 GHZ 2*A75+1.8GHZ 6*A55 | |
| DDR | SAMSUNG DDR3 4GB | |
| EMMC | 64GB | |
| Max External Memory | 128G | |
| Radio | FM/AM | |
| Screen | 2.5D IPS Full Touch Screen | |
| Screen Resolution | 1024*600 | |
| GPU | ARM Mali G52 614.4MHz | |
| Radio IC | NXP 6686 | |
| Power amplifier IC | TDA7850 | |
| Bluetooth IC | BC5.0 | |
| Power supply | 4*50W max | |
| Video Decoder | 1080P HW | |
| DSP | 32-Band Equalisation | |
| OSD Language | English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages | |
| Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI | |
| Support | Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DV |
| Multi media Parameters | |
| Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Video Format | MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip |
| Picture Format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| Frenqency Range | FM:76.0MHz-108.0MHz |
| Frenqency Range | AM: 522KHz-1620KHz |
| Country | Australia,Europe,Russia,USA1,USA2, |
| Amplifer Parameters | |
| Test Voltage | 14.4V |
| Max output power | 4*50W |
| GPS Parameters | |
| Support Map | Android 12.0 Map:google/here/sygic/tomtom/waze/igo... |
| Main Frenqency | 1.575GHz |
| WIFI Parameters | |
| Power supply | Vcc_3.3V |
| Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Interface type | USB2.0 |
| Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
Could you take a picture to show your car center dash console if you are confused!
Idoing 7" Newest Version Android Car GPS System
This unit will fit the following car models:
for Scion:
Scion FR-S 2013-2016 Scion IQ 2012-2015 Scion TC 2005-2016
Scion XB 2004-2015 Scion XD 2008-2014 Scion XA 2004-2006
for Subaru:
Subaru BRZ 2013-UP Forester(with SD based navi) 2009-2013
for Pontiac:
Pontiac Vibe 2003-2008
for Toyota:
Toyota Celica 2000-2005 Toyota FJ 2007-2014
Toyota Corolla(with navi) 2009-2013 Toyota Echo 2000-2005
Toyota Matrix 2003-2008 Toyota Highlander 2013
Toyota MR2 Spyder 2000-2005 Toyota RAV4 2001-2005
Toyota Sequoia 2003-2007 Toyota Tundra 2003-2006
Toyota Yaris(4-door) 2007-2010 Toyota 4 Runner(excluding limited) 2003-2009
Toyota Highlander(w/out factory navi) 2001-2007 Toyota Yaris(without power package) 2007-2010
Toyota Matrix(w/factory navi) 2009-2010
An universal Toyota wiring harness (plug-and-play) is included in the package.However,if your car comes with factory amplifier sound system(such as JBL),you need to purchase extra Amplified toyota wiring harness or amp bypass instead.Search with "Toyota Amplified harness" on Amazon for more details.A picture of amplified harnessis attached.You can also write to us for more help.
After:

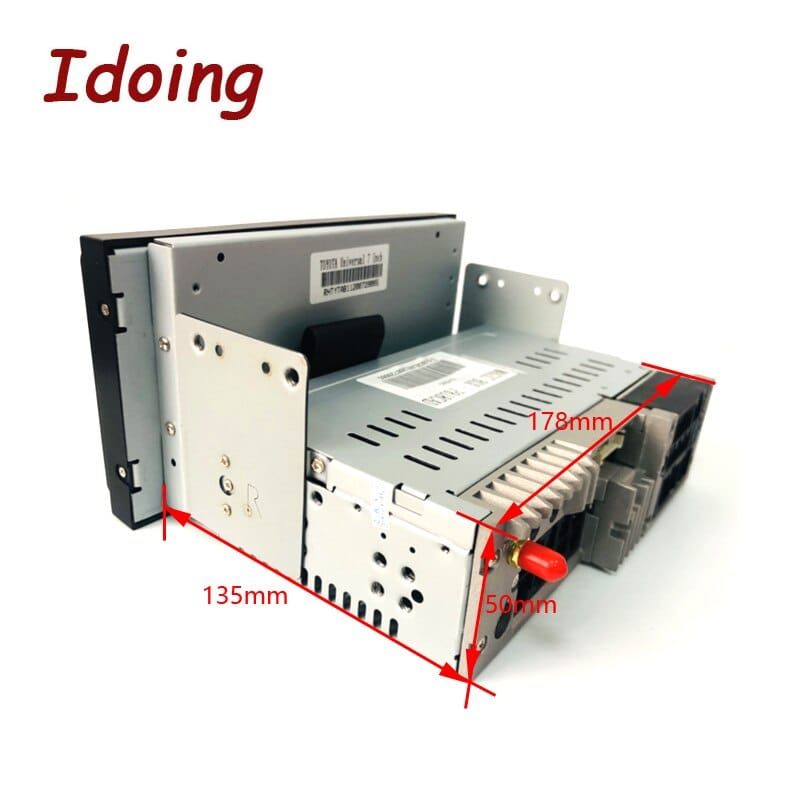

Product installation size(Very important)
All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping
Android 12.0 Operating System
2.5D+IPS Display Screen
2.5D,prevent scraping,IPS screen for all viewing angles very clear.

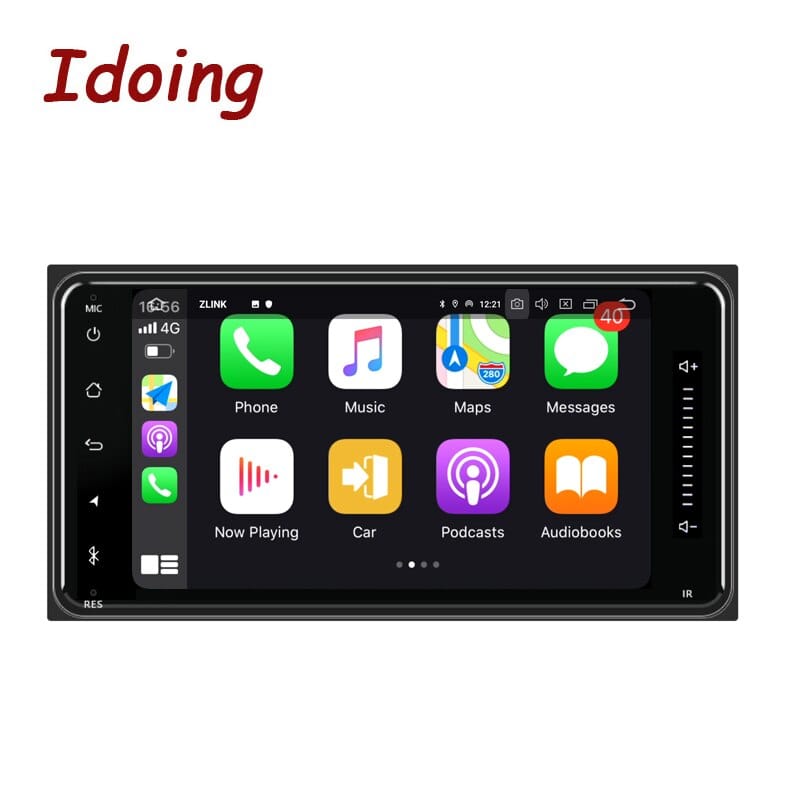

Built-in Carplay(wireless+wire) And Android Auto

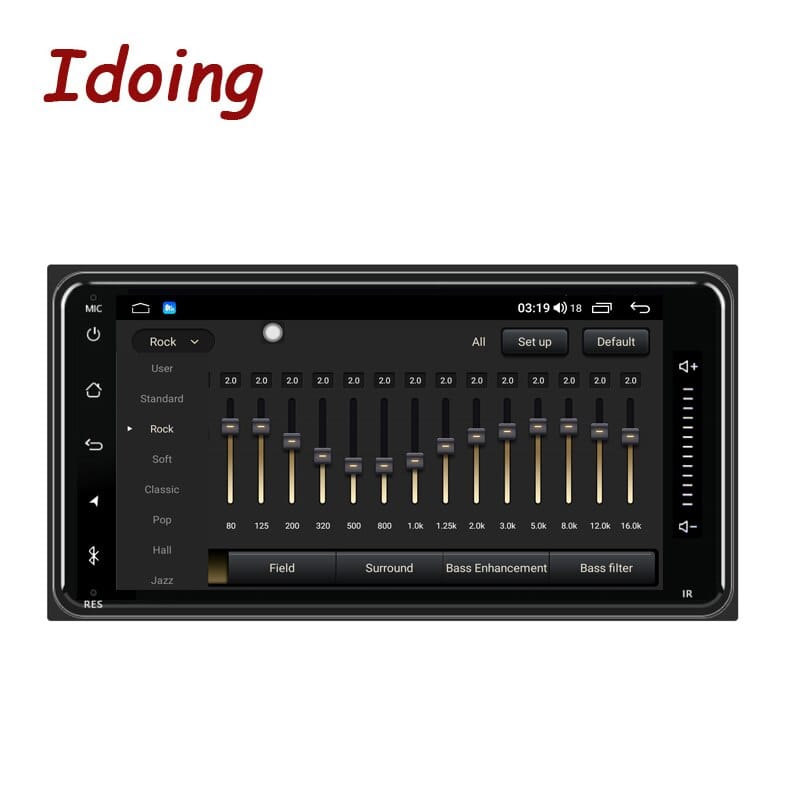

Build-in 32 EqualizerDigital Signal Processing(DSP)
32 Equalizer Adjustments
FM/AM/RDS Radio
1.Automatic or manual station search function.
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
Silicon crystal microphone
1.silicon crystal mic for bluetooth hand-free calling better sound quality.
2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.
Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.map can be run the background to achieve music navigation functions.
3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.
4.Support maps:google/here/sygic/tomtom/waze/igo...
Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
Multimedia Function
Support full HD resolution 1920*1080P pixels videos.
Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.
Support 7 kinds of button colors

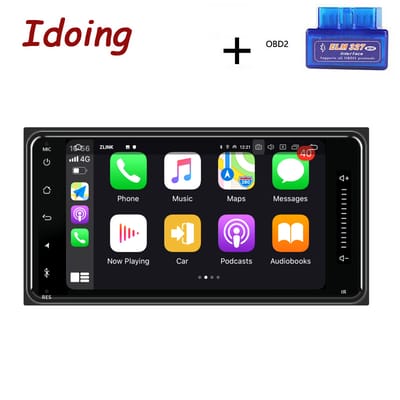

Support OBD2(optional)
You can connect a bluetooth OBD2 scanner tool to use this function.
Built-in 4G Modem
Support ADAS USB DVR(optional)

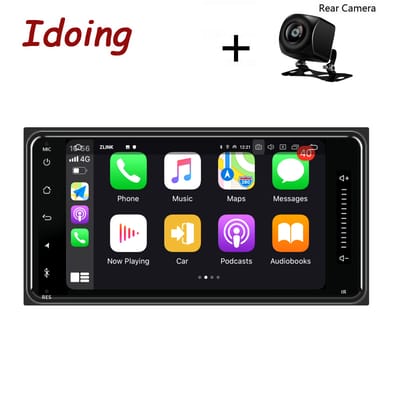

Support AHD Rear View Camera(optional)
Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.
Support DAB+(optional)
1.connect with a DAB+Box via USB port to use DAB+ function.
2.support input digital radio programs and touch operation.
3.support touchscreen to search programs.
Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
Sales: 13
Member Sales: 0
| Username | vip | Country | Quantity | Creation Time |
Develop your business with App anywhere anytime
Scan the QR code to download. (Only Android users are supported.)

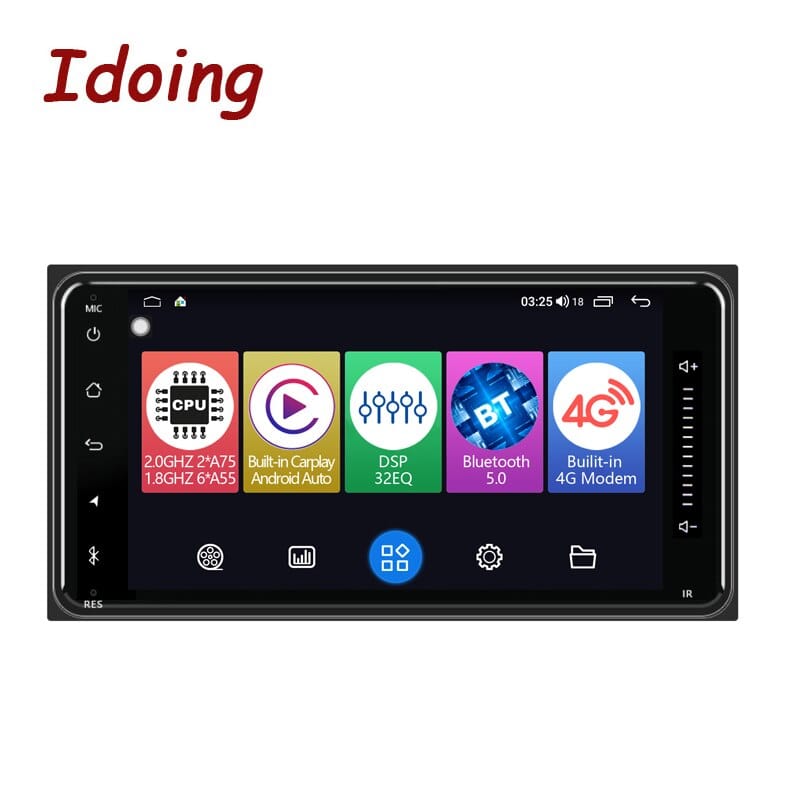

![Idoing 7"Android 2.5D Head Unit Plug And Play For Toyota-Universal Car Radio Audio Multimedia Player GPS Navigation Carplay Auto](https://images-oss.2cshop.com/upload/customer_7299/upload/20220420/Idoing7quotAndroid2.5DHeadUnit-thumb-0.jpg?x-oss-process=image/format,jpg/quality,q_100 "Idoing 7"Android 2.5D Head Unit Plug And Play For Toyota-Universal Car Radio Audio Multimedia Player GPS Navigation Carplay Auto")
